Premium force gauge with external measuring cell, tension loops included with delivery
Turnable display with backlight
Peak-Hold function to capture the peak value or Track function for continuous display of measurement
Metal housing for durable use in harsh environmental conditions
Can be mounted on all SAUTER test stands starting 1 kN
Capacity display: A bar lights up to show how much of the measuring range is still available
Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal
Internal memory for up to 500 measurement values
Continuous analogue output: Linear voltage signal in dependence to the load (-2 to +2V)
USB data interface, as standard
Selectable measuring units: N, kN, kgf, ozf, lbf
Delivered in a robust carrying case

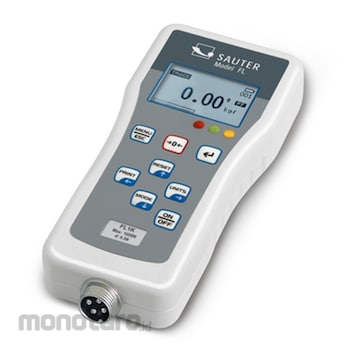

Sauter Digital Force Gauge
#Grup produk P111315491
Spesifikasi
| Dimensions Completely Mounted (WxDxH) (mm) | 175x75x30 |
|---|---|
| Interfaces | RS-232 Standard, USB-Device, Analogue (0 +/-2V) |
| Limit-Setting Function | Yes |
| Material Housing | Metal, Lacquered |
| Measuring Head Measuring Frequency (Hz) | 1000 |
| Measuring Range Force (Max) (kN) | N : 5 |
| Memory Function | Yes |
| Number of Platforms/Channels | 1 |
| Readability Force (d) | (N)2 N |
| Rechargeable Battery (V/mA) | 4,8 / 750 |
| Supply power supply | Accu & Power Supply |
| Tolerance (% of (Maximum)) | 0.2 |
