This is a heavy-duty oil-free bearing with a copper alloy base and an embedded plug made of carefully selected solid lubricants.
Maintenance-free and no need for oiling.
Extremely excellent wear resistance. Demonstrates excellent wear resistance in applications where oil film formation is difficult, such as reciprocating motion, intermittent motion, and oscillating motion under high load and low speed conditions.
Low friction coefficient.
Can be used over a wide range of temperatures, from low to high.
Excellent corrosion resistance and chemical resistance.
Excellent impact resistance.
Counterpart mounting size :
Housing inner diameter (Φmm): 14 H7 (+0.018/0)
(Shaft diameter) General use/High load (Φmm): 10d8 (-0.040/-0.062)
(Shaft diameter) General use/Light load (Φmm): 10e7 (-0.025/-0.040)
(Shaft diameter) High precision (Φmm): 10f7 (-0.013/-0.028)
Recommended value
Daido Metal Industry Dieslide Bush HA
#Grup produk P111313703
Spesifikasi
| Chamfer Dimension C (mm) | C0.5 |
|---|---|
| Inner Diameter (mm) | phi 10 |
| Outer Diameter (mm) | phi 14 |
| Length (mm) | 20 |
| Outer Diameter Tolerance (mm) | +0.018/+0.007 |
| Base Material | High strength brass |
| Inner Chamfer (mm) | 1×10° |
| Inner Diameter Tolerance (mm) | +0.028/+0.013 |
| Length Tolerance (mm) | -0.1/-0.3 |
| Outer Chamfer (mm) | 0.75×15° |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning

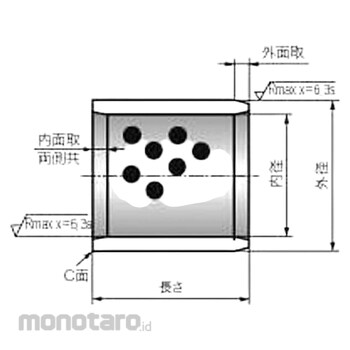

*Sample image (please check the specifications of each product number for details)Ulasan Produk
