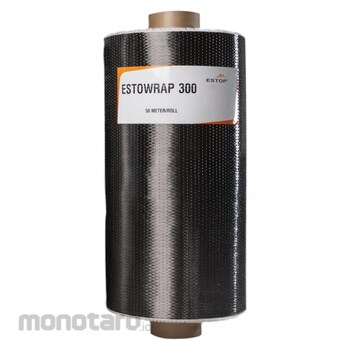

EstoWrap 300 is a high tensile strength, high elastic modulus sheet of longitudinal oriented continuous carbon fiber element which are held in position by lightweight, open mesh scrim. FRP material can have as much as 10 times the tensile strength of steel.
When used in conjunction with a specially developed primer, improves structural performances by strengthening and improving shear strength and deformation properties. This FRP material design follows the ACI 440.2R-17 reference standard as the design standard.
For composite material pass ASTM D3039
Estop Lembaran Serat Karbon Kekuatan Tinggi
#Grup produk P111311006
Spesifikasi
| Areal Weight (g/m²) | 300 |
|---|---|
| Bond Strength (MPa) | >1.4 Concrete failure (ASTM D4541) |
| Density (g/cm³) | 1.8 - 2.0 |
| Elongation at Break (%) | 2.1 |
| Elongation/Strain (%) | 2.1 (ASTM D3039) |
| Fabric Thickness (mm) | 0.167 |
| Fiber Tensile E-Modulus (GPa) | 240 |
| Fiber Tensile Strength (N/mm²) | 4900 |
| Laminate Thickness (mm) | >0.8 |
| Packaging Size (m) | 0.5x100 |
| Rupture Strength (%) | Min 2.5 |
| Style | Woven UD |
| Tensile Modulus (Gpa) | >230 (ASTM D3039) |
| Type | High strength Carbon Fiber |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details.Feature
- Exhibit high tensile strength and elasticmodulus
- Good dimensional stability
- High impact resistant
- Resin is of high chemical resistant
- Imparts very low electrical conductivity
- Will not corrode
- Lightweight hence easy to handle and use
- Carbon reinforced hence good thermal
expansion
- High shear stress and cut resistance
Use
EstoWrap 300 is used for strengthening columns and beams of load bearing structures specifically where improvement to shear strength and deformation properties is required. Typical applications include piers, columns, connecting beams and slabs of railway and road bridges, buildings and tower. In the following structures:- Commercial, high rise
- Industrial plants
- Warehouse
- Bridges, tunnels, jetties
- Pipes, culvert, chimneys
- Power station plants
