Inductive Hollow shaft encoder, Absolute
- 58mm diameter
- Extremely robust design
- Shock and vibration protected
- Inductive scanning

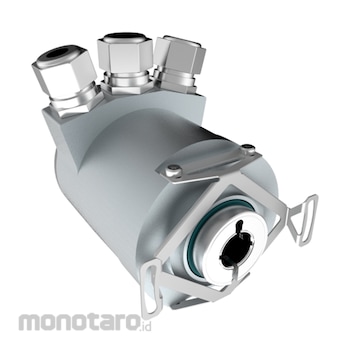

Leine Linde Inductive Hollow Shaft Encoder
#Grup produk P111308561
Spesifikasi
| Absolute Accuracy (arsec) | ± 180 |
|---|---|
| Absolute Resolution (bit) | 25 (13 singleturn + 12 multiturn) |
| Code Key | 60854818 |
| Connecting Direction | Radial |
| Connection Type | 3xM12 connectors |
| Cover Material | Aluminium (Anodized) |
| Current Consumption (mA) | (No load) 95 at 24Vdc |
| Flange type | 58/59-Flange with stator coupling |
| Ingress Protection Class (IEC 60529) | IP 66 and IP 67 |
| Maximum Rotation Speed (rpm) | 12000 |
| Maximum Shaft Load (N) | 100 (Axial)/140 (Radial) |
| Model | 608 Multiturn |
| Operating Temperature (°C) | -40...+70 |
| Polarity Protected | Yes |
| Power Supply (Vdc) | 9-36 |
| Shaft Material | Stainless Steel |
| Shaft Type (mm) | 12 Blind Hollow Shaft |
| Shock (m/s²) | ≤ 2000 (IEC 60068-2-27) |
| Type | IHA |
| Vibration (m/s²) | ≤ 300 (IEC 60068-2-64) |
