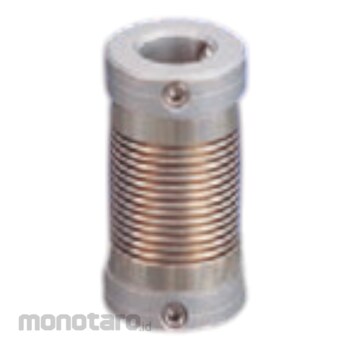

Bellow couplings
- High-performance precision coupling
- Excellent kinematic properties
- For applications with strict requirements for measurement accuracy
Leine Linde Bellow Couplings Bore
#Grup produk P111308349
Spesifikasi
| Bore Diameter (mm) | 6-6 |
|---|---|
| D Diameter (mm) | 12 |
| Key Size (mm) | 1.3 |
| L Length (mm) | 23 |
| L1 Bore Length (mm) | 6 |
| Max. Misalignment Angular (b) (°) | 15 |
| Max. Misalignment Axial (c) (mm) | 1.72 |
| Max. Misalignment Radial (a) (mm) | 0.54 |
| Moment of Inertia (kg.m²) | 1.85 x 10-7 |
| Peak Torque (Ncm) | 13 |
| Torsional Rigidity (N m/rad) | 28 |
| Type | Set screw |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
