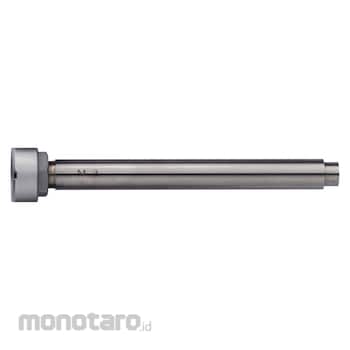

This is a bore gauge for measuring blind holes that offers you the following benefits:You can measure the inside diameter close to the bottom of blind holes.Contact points are carbide giving you high durability and wear resistance.
Delivered: In a box with bore gauge 511-417, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 11 anvils, 4 interchangeable washer
Mitutoyo BoreGauge Holes
#Grup produk P111293223
Spesifikasi
| Accuracy (µm) | 4 |
|---|---|
| Dimensions a (mm) | 22.7 |
| Dimensions b (mm) | 22 |
| Graduation (mm) | 0.001 |
| Measuring Depth (mm) | 150 |
| No. Dial Indicator | 2109AB |
| Range (mm) | 50-150 |
| Repeatability (µm) | 1 |
| Stroke of Contact Point (mm) | 1.2 |
| Type | Metric |
