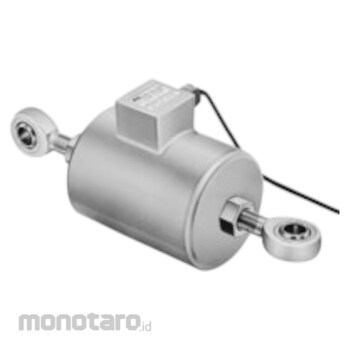

AND Tension Hermetically Sealed Tool Steel
#Grup produk P111292640
Sebelum PPN:
Rp15.999.900 - Rp27.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable Length (m) | 3 (118 inch) |
|---|---|
| Combined Error (%) | ±0.05 of Rated Output |
| Creep (%) | ±0.1 of Rated Output/Hour |
| Input Terminal Resistance (ohm) | Approximately 400 |
| Insulation Resistance | Greater Than 5000 MΩ at DC50 V |
| Maximum Excitation Voltage (V) | 15 |
| Maximum Safe Overload (%) | 200 of Rated Capacity |
| Output Terminal Resistance (ohm) | 350 ± 3.5 |
| Rated Output (mV/V) | 2 (±0.5%) |
| Recommended Excitation Voltage (V) | 12 |
| Temperature Compensation Range (°C) | -10 to +60 (+14 °F to 140 °F) |
| Temperature Effect | Zero (0.007% of Rated Output/°C), Span (0.002% of Rated Output/°C Typ) |
| Zero Balance (%) | ±2 of Rated Output |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
FeaturesDual guided cantilever and shear beam design for high accuracy
Hermetically sealed for complete protection from water and moisture and for use in harsh environments
Temperature compensation maintains both zero and span from -10 °C to +60 °C (+14 °F to +140 °F)
Can be used for multi-point weighing
