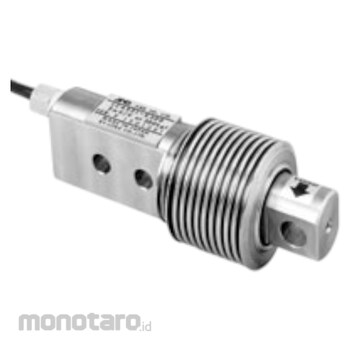

AND Stainless Steel Beam
#Grup produk P111292604
Sebelum PPN:
Rp11.999.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable Length (m) | 5 (195 inch) |
|---|---|
| Combined Error (%) | ±0.05 of Rated Output |
| Creep (%) | ± 0.1 of Rated Output/Hour |
| Input Terminal Resistance (ohm) | Approximately 400 |
| Insulation Resistance (MΩ) | Greater Than 5000 (at DC50 V) |
| Maximum Excitation Voltage (V) | 15 |
| Maximum Safe Overload (%) | 200 of Rated Capacity |
| Output Terminal Resistance (ohm) | 350 ± 5 |
| Rated Output (mV/V) | 2 ( ± 0.2%) |
| Recommended Excitation Voltage (V) | 12 |
| Temperature Compensation Range (°C) | -10 to +40 (+14 °F to +104 °F) |
| Temperature Effect | Zero (0.007% Rated Output/°C), Span (0.002% Rated Output/°C Typ) |
| Zero Balance (%) | 1 of Rated Capacity |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
FeaturesHermetically sealed with stainless steel bellows protects from water and moisture
Stainless steel body is ideal protection from corrosion
Compact size and lightweight
For both tension and compression usage
Dual guided cantilever design for high accuracy
Can be used for multi-point weighing
Temperature compensation maintains both zero and span from -10 °C to +60 °C (+14 °F to +140 °F)
