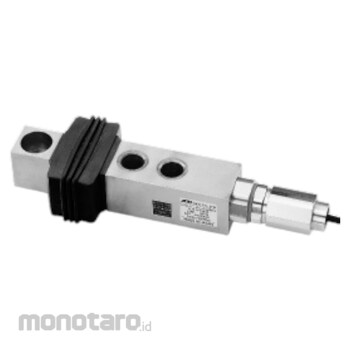

AND Flameproof Enclosure Stainless Steel Beam Loadcell
#Grup produk P111292400
Sebelum PPN:
Rp25.999.900 - Rp31.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable Diameter/Length (m) | φ7 / 5 |
|---|---|
| Combined Error (%) | 0.03 of R.O. |
| Dust & Waterproof | IP54 |
| Flameproof Type | Exd II BT4 |
| Input Terminal Resistance (ohm) | 390 ± 30 |
| Insulation Resistance (MΩ) | 5000 or Higher / DC50 V |
| Maximum Excitation Voltage (V DC) | 15 |
| Output Terminal Resistance (ohm) | 350 ± 5 |
| Rated Output (mV/V) | 1.0 (±0.1% (For 1 kN only, 0.5 mV / V±0.1%)) |
| Recommended Excitation Voltage (V DC) | 5 to 12 |
| Safe Load Limit (%) | 150 of R.C. |
| Temperature Compensation Range (°C) | -10 to 40 |
| Temperature Effect | Zero (0.028% of R.O. / 10 °C), Span (0.011% of Load / 10 °C Typ) |
| Zero Balance (%) | ±2 of R.O. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flameproof enclosure stainless steel beam load cells for platform, tank or hopper scales
Feature
FeaturesSuitable for use in harsh environments where flammable hazardous substances are handled and corrosion resistance is required.
Suitable for platform or tank scales.
For both tension and compression applications.
