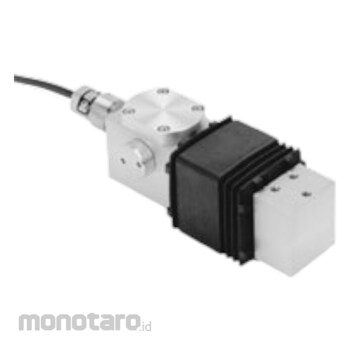

AND Flameproof Enclosure Single Point
#Grup produk P111292385
Sebelum PPN:
Rp30.999.900 - Rp42.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable Length (m) | φ7/6 |
|---|---|
| Combined Error (%) | 0.03 of R.O. |
| Dust & Waterproof | IP54 |
| Input Terminal Resistance (ohm) | 410 ± 20 |
| Insulation Resistance (MΩ) | 5000 (at DC50 V) |
| Maximum Excitation Voltage (V) | 15 |
| Maximum Safe Overload (%) | 150 of R.C. |
| Output Terminal Resistance (ohm) | 350 ± 5 |
| Recommended Excitation Voltage (V) | 12 |
| Temperature Compensation Range (°C) | -10 to 40 |
| Temperature Effect | Zero (0.05% of R.O./10 °C), Span (0.03% of Load /10°C Typ) |
| Zero Balance (%) | 20 ± 5 of R.O. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
FeaturesFlameproof class ExdlBT4 conformed
Adjusted for four corners
Tension and compression loading
Maximum pan sizes are 400 × 400 mm (LCB01), 400 × 600 mm (LCB02) and 600 × 700 mm (LCB06)
