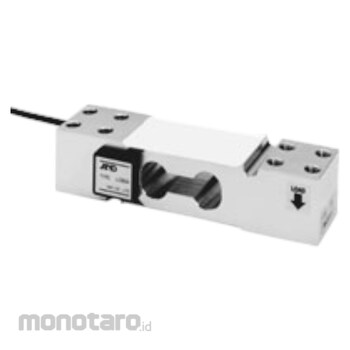

AND Compact Single Point Aluminium
#Grup produk P111292260
Spesifikasi
| Cable Diameter/Length (m) | φ3.5/1.5 |
|---|---|
| Combined Error (%) | 0.02 of R.O. |
| Creep (%) | 0.02 of R.O. (30 min) |
| Input Terminal Resistance (ohm) | 420 ± 30 |
| Insulation Resistance (MΩ) | 2000 (B/E DC50 V) |
| Maximum Excitation Voltage (V DC) | 15 |
| Maximum Overload (%) | 200 of R.C. |
| Maximum Platform Size (mm) | 400x400 |
| Operating Temperature (°C) | -10 to 40 |
| Output Terminal Resistance (ohm) | 350 ± 5 |
| Rated Output (mV/V) | 2 (±10%) |
| Repeatability (%) | 0.02 of R.O. |
| Safe Overload (%) | 150 of R.C. |
| Temperature Effect | Zero (0.023% of R.O./10°C), Span (0.014% of Load/10°C) |
| Ultra Compact Design Length (cm) | 15 |
| Zero Balance (%) | ±5 of R.O. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Adjusted for 4 corners, useful for platform scale, single point compact load cells
Feature
FeaturesUltra compact design -Just 15cm in length
Calibrated for 4 corner loads
Moisture proof
4 models to choose from
