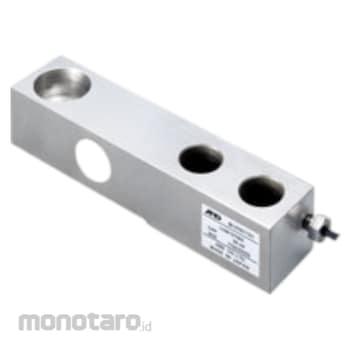

AND Beam Stainless Steel
#Grup produk P111292181
Sebelum PPN:
Rp4.899.900 - Rp9.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable Length (m) | 3 (118 inch) |
|---|---|
| Combined Error (%) | ± 0.03 of Rated Output |
| Dust & Waterproof | IP67 |
| Input Terminal Resistance (ohm) | Approximately 380 ± 20 |
| Insulation Resistance (MΩ) | Greater than 5,000 (at DC50 V) |
| Maximum Excitation Voltage (V) | 15 |
| Maximum Safe Overload (%) | 150 of Rated Capacity |
| Operating Temperature (°C) | -15 to 60 |
| Output Terminal Resistance (ohm) | 350 ± 3.5 |
| Rated Output (mV/V) | 2 (±0.1%) |
| Recommended Excitation Voltage (V) | 5 to 12 |
| Temperature Compensation Range (°C) | -10 to 40 |
| Temperature Effect | Zero (0.016% R.O./10 °C Typ), Span (0.013% Load/10 °C Typ) |
| Zero Balance (%) | 1 of Rated Output |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Stainless steel body construction protection from water, moisture and corrosion
Feature
FeaturesStainless steel body is ideal protection from corrosion (IP67)
Low profile and lightweight for easy mounting
Compact size.
For both tension and compression usage
Can be used for multi-point weighing
