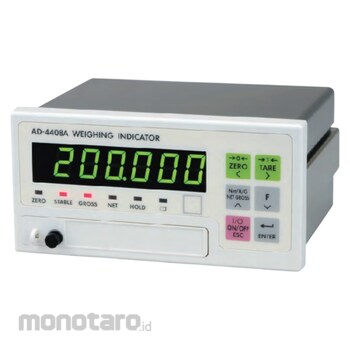

AND AD-4408 Weighing Indicator with Field Network Support
#Grup produk P111292002
Sebelum PPN:
Rp23.999.900 - Rp25.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| A/D Conversion Rate (time/s) | 100 |
|---|---|
| A/D Resolution | Approx.16,000,000 Counts |
| Display Element | Measurement Data Display (7-Segment 6-Digit Green LED With 14.6mm High Characters), Polarity Display (Green LED (1)), Status Display (Red LEDs (6)) |
| Load Cell Excitation | DC5V±5%, 120mA Equipped with Remote Sensing Up to 8 Load Cells(350Ω) Can be Connected. |
| Maximum Display Resolution | 999,999d (Less Than 20,000d Recommended) |
| Maximum Input Noise (µVp-p) | 0.3 |
| Maximum Measurement Voltage (mV) | -35 to +35 (-7mV/V to +7mV/V) |
| Measurement Data Display Unit | Switch to net weight value (NET) or gross weight value (GROSS), Display Range (0 to 999,999d (Select division from 1, 2, 5, 10, or 50)), Units (Affix a \"g\",\"kg\",or\"t\"Unit Sticker) |
| Minimum Input Impedance (MΩ) | 10 |
| Minimum Input Sensitivity (µV/d) | 0.15 |
| Non-linearity (%) | 0.005 of F.S. |
| Operating Temperature and Humidity (°C) | -10 to 40 (85%RH) or Less (No Condensation) |
| Physical Dimension (WxHxD) (mm) | 144x72x135 (Including Protruding Parts) |
| Power (V AC) | 100 to 240 (+10%-15%) (50/60Hz) |
| Power Consumption (VA) | Approx.10 |
| Standard Serial Output (mA) | 20 Current Loop Signal (Exclusive Output for A&D Peripheral Devices) |
| Status Display | ZERO, STABLE, GROSS, NET, HOLD, and (Selected Function in Operation) |
| Temperature coefficient | Zero (±0.02µV/ °C(Typ.) ±0.1µV/ °C(Max.), Span (±3ppm/ °C(Typ.) ±15ppm/ °C(Max.) |
| Zero Adjustment Range (mV) | -35 to +35 (-7mV/V to +7mV/V) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
