The EBI 16 detect the steam penetration by measuring physical
quantities and automatically evaluates the cycle. All measurement data
are stored together with the report in a database.
A vacuum test can also be carried out with the EBI 16
• Simple and quick operation
• Secure data acquisition
• Designed for 1.000 cycles or 3 years without recalibration.
Standards and Directives:
• ISO 11140-4
Sterilization of health care
products
• 2014/53/EU
Radio Equipment Directive RED

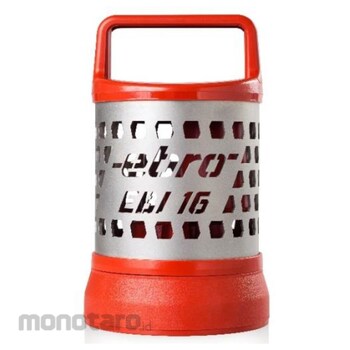

ebro EBI 16 Bowie Dick Test Data Logger
#Grup produk P111288160
Spesifikasi
| Accuracy Pressure (mbar) | ±15 (1 ... 3,499) ±20 (3,500 ... 4,000) |
|---|---|
| Battery (V) | Lithium, 3.6, User-replaceable |
| Data Memory | 2 x 33,440 (Measurement Values) |
| Dimensions (mm) | 90 x 150 (ø X H) |
| Housing Material | 316 L stainless steel / PEEK |
| Measurement Interval | 250 ms ... 24 h |
| Measurement Mode | endless measurement Measure upon starttime Start immediately until end of memory Start-/Stop measurement |
| Measurement Range Pressure (mbar) | 1 ... 4,000 |
| Measurement Range: Temperature (°C) | 0 ... +140 |
| Temperature Accuracy (°C) | ±0.1 |
