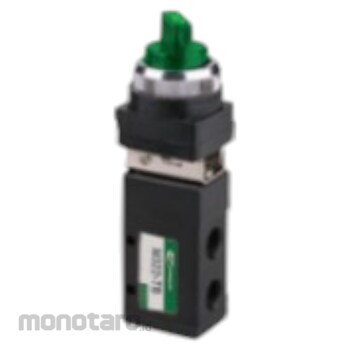

VPC M Series Mechanical Valve
#Grup produk P111274246
Spesifikasi
| Button Type | Selection |
|---|---|
| Control Mode | Mechanical control/Manual control |
| Joint Size (inch) | G 1/4 |
| Lubrication | No |
| Maximum Pressure (MPa) | 1.2 |
| Ways | 2 Position |
| Working Medium | Clean Air |
| Working Pressure (MPa) | 0.15 to 0.8 |
| Working Temperature (°C) | -5 to 80 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
M series mechanical valve ideal for controlling cylinders or pneumatic actuators by being triggered by something moving over the roller and pushing the lever down, once it is past the lever will spring return. Simple to use, install and maintain.
Peringatan
- Mohon untuk mengecek kembali informasi ukuran dan detil produk pada Attribute Information sebelum membeli- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya. Produk yang diterima akan sesuai dengan informasi model number/part number
Feature
1. Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.2. The external force required by direction-change of series of M(x)B and M(x)R is provided by external mechanism, which can be used for position test or stroke switch limit switch.
3. M(x)PP, M(x)PPL, M(x)PB, M(x)EB and M(x)TB are operated manuall, owning control joints with several structure forms and suitable for application under different conditions.
4. It is in sliding column structure that the control force is not infuenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
5. No need to add oil for lubrication.
6. Multi-mounting makes it convenient to install and apply.
