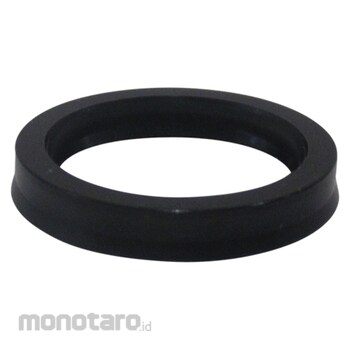

This is a rod-specific U-packing with a small cross-section design that is compatible with JIS B 2401-1 P series O-rings.
It has better sealing properties than O-rings and excellent friction characteristics.
Sakagami Hydraulic Seal
#Grup produk P111274006
Spesifikasi
| Material | NBR(RN906) |
|---|---|
| Temperature Range (°C) | -10 to 80 |
| Maximum Speed (m/s) | 0.5 |
| Dimensions d (mm) | 7 |
| Dimension D (mm) | 10 |
| Dimension GA (mm) | 2.5 |
| Dimension GB (mm) | 3.9 |
| Dimension H (mm) | 2.1 |
| Dimensions d1 (mm) | 7.2 |
| Dimensions ℓ (mm) | 1.5 |
| Normal Pressure (MPa) [kgf/cm²] | 14 [140] |
