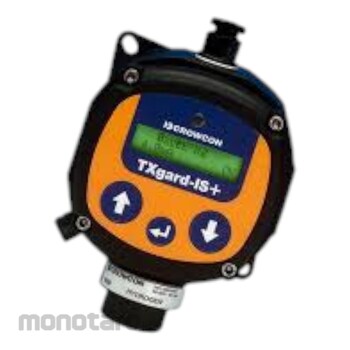

TXgard-IS+ is a Intrinsically Safe (I.S.) toxic and oxygen gas detector with local LCD display. A very wide choice of sensors are available for use in a variety of applications. TXgard-IS+ is ATEX certified for use in Zone 0,1 or 2 hazardous areas and also UL and cUL certified for use in Division 1 or 2 hazardous areas.
Non-intrusive calibration
Calibration can be performed locally without the need for hot work permits – minimises operational down-time
Local display and buttons enable calibration without opening the junction box
Flexible output options
4-20mA current sink – works with a wide selection of control panels
2 wire format
Rugged and reliable
Made from tough carbon loaded nylon
Ingress protection to IP65 as standard
Low cost of ownership
Non-intrusive one man calibration – easy to operate and maintain
Long life sensors – keeps interuption to on-site activity to a minimum
Simple parts replacement
Wide range of sensors
Extensive range of electrochemical sensors for toxic gases and oxygen
Crowcon Single Gas Leak Detector
#Grup produk P111273788
Sebelum PPN:
Rp99.999.900 - Rp109.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Display 2-Line, 16 character LCDCalibration method Via push-buttons
Electrical output 2 wire 4-20mA sink
Terminals Suitable for up to 2.5mm2 cable
Sensor type Electrochemical
Repeatability +/- 2% FSD typically
Zero drift +/- 2% FSD, 6 months typically
Response time Contact Crowcon for a full list of sensor response times
Performance Tested in accordance with EN60079-29-1
Hazardous area zones Zone 0, 1 or 2
Division 1 or 2
(when connected via an isolation device)
Approvals Ex II 1 G Ex ia IIC T4 (-40°C to +65°C)
Exia IIC T4 Gb Tamb -20°C to +55°C
UL Class I, groups A, B, C and D
EMC compliance EN 50270, FCC: CFR 47 Part 15, ICES-003
