The Murphy TR Series Transformer Relay Assemblies are electric motor controllers. It is used with electric motors or driven equipment which is started and stopped from a remote, normally open Swichgage. TR Series internal control circuits are completely pre-wired and relays are plug-in type to facilitate field servicing.
Heavy-duty transformer with multiple primary taps for easy connection to most any available AC power sources
24 VAC low voltage secondary control circuit with terminals for remote auxiliary switches
Plug-in relays have three SPDT silver cadmium oxide contacts providing long life reliability
Power relay has extra heavy silver cadmium oxide contacts rated 10 amp, 480 VAC
When TR is used with a Murphy Analog Swichgage, it allows for visual reading of operating conditions and provides an adjustable differential between high and low settings throughout the Swichgage dial range
Comply with National Electrical code 1975, Article 430-73

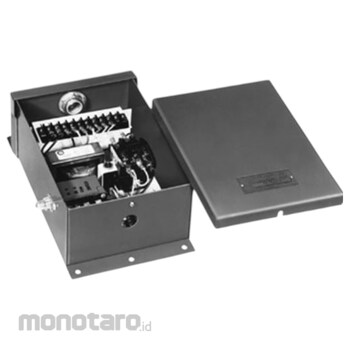

Murphy Transformer Relay Assemblies
#Grup produk P111273469
Sebelum PPN:
Rp53.999.900 - Rp75.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Conduit Bottom (inch) | 1/2 Hole |
|---|---|
| Conduit Top (inch) | 3/4 hub |
| Control Relays | Plug-in, 120 V, 10 A contact rating |
| Power (Holding) | 10 A, 480 VAC, SPST |
| Power Rating (V/A) | 25 |
| Series | TR Series |
| Terminal Blocks | High Voltage rated at 30 A, 600 V; Low Voltage rated at 20 A, 300 V |
| Transformer | Primary (power supply) with triple taps for 120/240/480 VAC; 50/60 Hz; Secondary (control supply) 24 VAC |
