The SHD30 is a microprocessor-based digital tachometer with an hourmeter and an overspeed trip point. The trip point can be connected as either a form "c" relay output or as a normally open SCR output for alarm or shutdown on overspeed. The five-digit, liquid crystal display is updated every second.
The SHD30 receives power and RPM data from either a magnetic pickup or a capacitor discharge (CD) ignition. The hourmeter is adjustable to a preset time and resettable to zero. Should power be lost, on-board batteries maintain the run hours display and allow for resetting the overspeed relay output.
Approved for Class I, Division 2, Groups C & D hazardous areas.

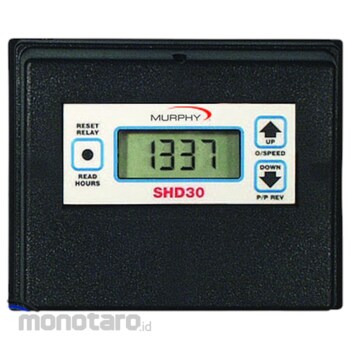

SHD30 digital tachometer and hourmeter by Murphy.
Panel-mounting design
RPM data and power supplied by magnetic pickup or capacitor discharge (CD) ignition
Murphy Digital Tachometer and Hourmeter
#Grup produk P111273089
Sebelum PPN:
Rp37.999.900 - Rp43.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Hourmeter Range (hour) | 0 to 65535 |
|---|---|
| Ignition Frequency Range (Hz) | 3 to 666 |
| Magnetic Pickup Frequency Range (kHz) | 1 to 10 |
| Plastic Enclosure Height (inch) | 4-1/4 |
| Plastic Enclosure Height (mm) | 108 |
| Plastic Enclosure Length (inch) | 5-1/16 |
| Plastic Enclosure Length (mm) | 129 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
