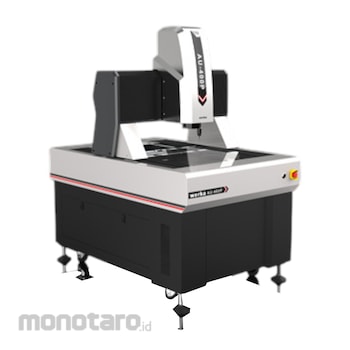

Werka 3D Automatic Vision Measuring Machine with Probe
#Grup produk P111250006
Sebelum PPN:
Rp969.999.900 - Rp1.499.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Contour | LED parallel contour illumination |
|---|---|
| Guidance Mode | Precision linear guide, double-track double slider guide |
| Load Capacity (kg) | 25 |
| Monitor Size (inch) | 21.5 |
| Operation Mode | Joystick controller, mouse operation, automatic detection program |
| Optical Magnification (x) | 0.7 to 4.5 |
| Power Supply | 220V/50Hz/10A |
| Temperature Change Range (°C/hour) | <2 |
| Z-Axis Travel (mm) | 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Moving bridge type structure, measuring workpiece is fixed;- Four-axis CNC fully auto close loop control, auto measurement;
- Marble base and pillar stable and reliable;
- Imported linear scale grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;
- Imported HD color camera to meet the needs of clear observation and accurate measurement;
- Motorized zoom lens, accurate doubling and one times pixel correction only needed;
- With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;
- Equipped with imported MCP Probe to perform 3D measurement;
- With proprietary fully auto measuring software powerful function, simple operation
