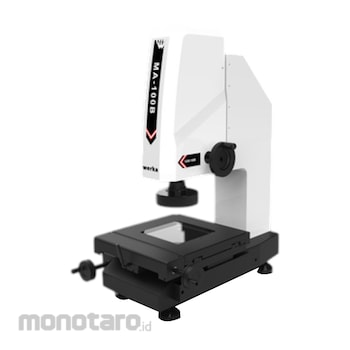

Werka 2D Movable Vision Measuring Machine
#Grup produk P111249985
Spesifikasi
| Accuracy (µm) | E1xy<2.4 + L/200 |
|---|---|
| Contour | LED Parallel Illumination |
| Magnification (x) | 0.7 to 4.5 |
| Repeatability (µm) | 2 |
| Surface | Stepless Adjustable 4-ring 8-division LED Cold Illumination |
| Video Magnification (x) | 26 to 172 |
| Vision System | USB CMOS Digital Camera; 6.5x High Resolution Optical Detent Zoom Lens |
| Working Table (mm) | 130x130 (Glass) |
| X/Y Axis Guidance Mode | High precision guide, toothless rod and fast-moving locking device |
| X/Y-Axis Linear Travel (mm) | Resolution: 0.0005, high accuracy A-grade linear scale |
| X/Y-Axis Travel (mm) | 100x100 |
| Z-Axis Travel (mm) | 100, High-precision V-type guide |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- MA-100B is able to be moved in different workshop and laboratory by the mall size light weight easily;- High precision toothless rod and fastmoving locking device ensures repeatability error is less than 2um;
- High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um;
- High definitive detent zoom lens and high resolution color camera ensures clear image without distortion;
- With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;
- Powerful function iMeasuring 2.0 Measuring Software, highly enhance the quality control, and it can output Word, Excel, PDF, TXT report and AutoCAD file automatically
