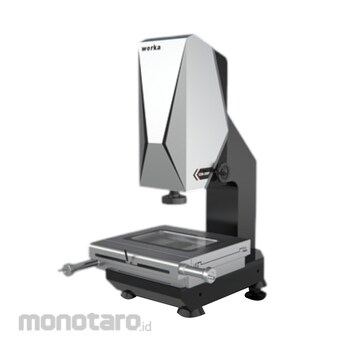

Werka 2.5D Manual Vision Measuring Machine
#Grup produk P111249967
Sebelum PPN:
Rp149.999.900 - Rp389.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| CCD Camera | High Resolution 700TV Color CCD Camera |
|---|---|
| Contour | LED Parallel Illumination, LED Laser Navigation Lights |
| Humidity (%) | 30 - 80 RH |
| Magnification (x) | 0.7 to 4.5 |
| Power Supply | 220V/50Hz/10A |
| Surface | Stepless Adjustable 4-ring 8-division LED Cold Illumination |
| Temperature (°C) | 20±2 |
| Temperature Change Range (°C/hour) | <2 |
| Vibration | <0.002g, <15Hz |
| Video Magnification (x) | 26 to 172 |
| Working Table (mm) | 356x248 (Glass) |
| X/Y Axis Guidance Mode | High precision guide, toothless rod and fast-moving locking device |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- High precision marble base and pillar to ensures high stability and accuracy;- High precision toothless rod and fast moving locking device, to ensures repeatability error is within 2um;
- High accuracy A grade optical linear scale with precision working stage, to ensure the accuracy is within 2.5+L/200um;
- High definitive detent zoom lens and high resolution color digital camera to ensures clear image without distortion;
- With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;
- Power ful function iMeasuring2.1 measuring software highly enhance the quality control situation
