Werka 2.5D Automatic Vision Measuring Machine
#Grup produk P111249949
Sebelum PPN:
Rp979.999.900 - Rp1.499.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Contour | LED parallel contour illumination |
|---|---|
| Guidance Mode | Precision linear guide, double-track double slider guide |
| Load Capacity (kg) | 25 |
| Monitor Size (inch) | 21.5 |
| Operation Mode | Joystick controller, mouse operation, automatic detection program |
| Optical Magnification (x) | 0.7 to 4.5 |
| Power Supply | 220V/50Hz/10A |
| Temperature Change Range (°C/hour) | <2 |
| Video Magnification (x) | 20 to 129 |
| Z-Axis Travel (mm) | 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

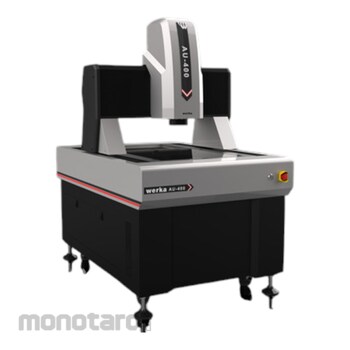

AU-400 Series is a high precision moving bridge type vision measuring machine, it adopted mobile-bridge structure and designed for high precision and large size measurement to ensure measuring accuracy and stability. it is widely used for measuring in electronic industry, medical instrument, LCD and aerospace industry
Feature
- Moving bridge structure, measured workpiece is fixed;- Four-axis CNC fully auto close loop control, auto measurement;
- Marble base and pillar(grade 00), stable and reliable;
- Imported linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;
- Imported HD color camera to meet the needs of clear observation and accurate measurement;
- 6.5x high-resolution motorized zoom lens, accurate doubling and one times pixel correction only needed;
- With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;
- Powerful function and easy operation measur
