Attribute
Power supply voltage (V) : 12 to 24 DC ±10%, Ripple P-P 10% or less
Withstand voltage (V) : AC1000 for 1 minute between live parts and case
Insulation resistance : 20MΩ or more with DC250V megger Between live parts and case
Output Action : ON when all optical axes receive light (OFF when 1 or more optical axes are blocked)
Output Specifications : Maximum inflow current: 100mA, Applied voltage: 30V DC or less (between output and 0V), Residual voltage: 2V or less (at inflow current of 100mA)
Vibration resistance (durability) : 10 to 150Hz, double amplitude 0.75mm, 2 hours each in XYZ directions
Impact resistance (m/ s2 ) : Durability 500 (approx. 50G) 3 times in each direction of XYZ
kinds : Area Sensor
Panasonic (Panasonic Industrial Devices SUNX) General-purpose Ultra-thin Area Sensor NA2-N
#Grup produk P111245749
Spesifikasi
| Detection Target | Opaque object (completely blocking object) |
|---|---|
| Detection Light | Multiple rows |
| Detection Distance (mm) | 5000 |
| Light Color | Infrared |
| Head Shape | Corner |
| Output Method | NPN transistor open collector |
| Ambient Temperature (°C) | -10 to +55 (but no condensation or freezing) |
| Cable Extension (m) | Both the emitter and receiver can be extended up to a total length of 25m using a cable of 0.2mm2 or more |
| Cabtyre Cable (mm²xm) | 0.2×3 (4-core) cabtyre cable included |
| Case Material | Heat-resistant ABS |
| Detection Width (mm) | 380 |
| Material Display Cover | Acrylic |
| Material Front Cover | Polyester |
| Minimum Detectable Object | phi 30 opaque object (completely light-shielding object) |
| Model | NPN Output |
| Operating Humidity Range (%RH) | 35 to 85 |
| Product Name | Ultra-thin area sensor |
| Protective Structure | IP40(IEC) |
| Storage Humidity Range (%RH) | 35 to 85 |
| Storage Temperature Range (°C) | -10 to +60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning

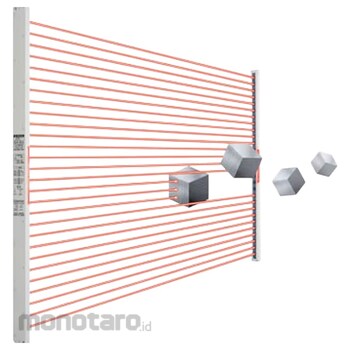

*Sample image (please check the specifications of each part number for details)Ulasan Produk
