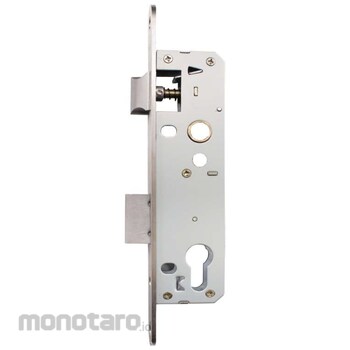

Briton NL1000 Series Narrow Stile Lockcases
- 304 stainless steel faceplate for corrosion resistance
- 304 cast stainless steel latchbolt with arc design for smooth operation
- Field reversible latchbolt direction
- Full length deadbolt throw in one-turn
- Guide plate for cylinder screw makes installation easier
- Faceplate with round and square options available for easy drilling
Standard
Testing & Certifications
Certified to GB21556 and QB2474
Product tested:
Latchbolt durability test - 200,000 cycles; Deadbolt durability test - 50,000 cycles
Corrosion resistance - 96h salt spray test
Briton Narrow Lockcase
#Grup produk P111238475
Spesifikasi
| Backset (mm) | 30 |
|---|---|
| Compatible Cylinders | Schlage EC900 series, Briton KC500 series |
| Dead Throw Dimension (mm) | 15.5 |
| Deadbolt Material | 304 stainless steel |
| Faceplate Dimension (mm) | 240x23x3 |
| Faceplate Material | 304 stainless steel |
| Finish Material | Satin stainless steel (standard) |
| Follower to Cylinder Center Dimension (mm) | 85 |
| Handing | Non-handed, field reversible |
| Latchbolt Material | 304 stainless steel |
| Lockcase Dimension (mm) | 173x46x16 |
| Lockcase Function | Passage Latch, sashlock, deadlock, ball lock |
| Standard Fastener | 2 machine screws (lockcase) |
