Pulse width: 5ns 10ns 20ns 50ns 100ns 200ns 500ns 1us 2us 5us 10us
Screen: 4.3-inch TFT-LCD (Standard distribution capacity touch screen)
Power supply: Adapter /Charger input 100-240 VAC, 50Hz, lithium battery

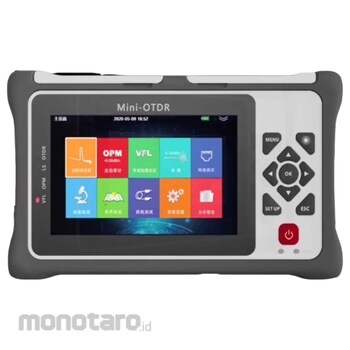

Skycom Smart Optical Time Domain Reflect
#Grup produk P111232930
Spesifikasi
| Attenuation Dead Zone (m) | < 7.0 |
|---|---|
| Battery | 3.7V/5200mAh,Standby time > 10 hours |
| Data Interface | 2 USB(Type A×1,Micro USB×1, SD card) |
| Dynamic Range (dB) | 24/22 |
| Event Dead Zone (m) | < 2.0 |
| File Format | Sor standard file format |
| Humidity (%) | ≤95 (No condensation) |
| Linearity (dB/dB) | ≤0.05 |
| Loss Resolution (dB) | 0.001 |
| Loss Threshold (dB) | 0.01 |
| Max. Test Range (km) | 80 |
| Measuring Range (m-km) | 100 - 80 |
| Memory | >40000 tested results |
| Range Accuracy | ±(0.5m+Range×3×10-5+Sampling resolution) (Excluding refractive index error) |
| Range Resolution (m) | 0.01 |
| Sampling Resolution (m) | Min 0.2 |
| Storage Temperature (°C) | -20 to +80 |
| The Sampling Point | 64,000 point |
| Wavelength (nm) | 1310/1550 |
| Working Temperature (°C) | -10 to +55 |
