-Check Coax, Cat.7,6 and 5e twisted cordnetwork and trouble.
-Identifi es and locates the distance to anopen or a short in seconds.
-Use TDR (time domain refl ect meter),Measure length and distance, fi nd thetrouble location.
-Find the determined open circuit, shortcircuit, jumper, crossed and or split pairs.
-Service line test and no external adaptor is required.
-Determine continuity and wiring pattern.
-Low Battery indication.
Testing LAN Mode (Remote) :
-Testing From MAIN RJ$% Connector to REMOTE RJ$% Terminator Connector
Testing Coax Mode :
-Testing From F Connector to REMOTE F Terminator Connector
TEsting Length Mode :
-Testing From MAIN RJ45 Connector to Open Cable on other end
Testing LAN Mode (Loopback) :
-Testing From MAIN RJ45 Connector to LOOPBACK RJ45 Connector
Accessories
F to BNC Adapter *2 pcs 9 Volt Battery *2 pcs, RJ45/RJ11 Adapter Belt Clip *1pcs, BAG *1pcs

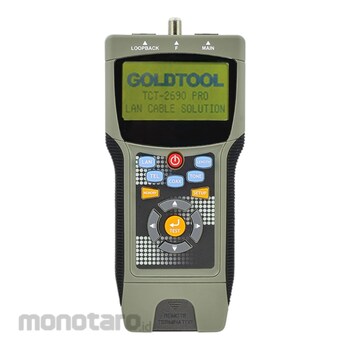

GoldTool LAN Cable Solution Multi-Function Tester
#Grup produk P111226018
Spesifikasi
| Button | (1) Lan. (2) Tel . (3) Coax . (4) Tone . (5) Length (6) Test (7) Power. (8) Button Up (9) Button Down. (10) Button Left (11) Button Right. (12) Memory (13) Setup |
|---|---|
| Cable Length & Accuracy | Accuracy of the Length Measurement is +- 5% Length: 1-350 Meters (3-1200 feet) |
| Cable Type | Shielded or Unshielded, CAT -5, CAT-6, CAT-7 |
| Connector Type | RJ45, RJ12 (RJ11) & F Connector |
| Display LCD Module (mm) | 64 x 33 |
| Environmental | Operating Temperature (0° to 50° C (32° to 122°F), Storage Temperature (-10° to 60° C (14° to 140°F), Humidity (10% to 90% Non-Condensing) |
| Error Status | Open Circuit, Short Circuit, Cross Circuit And Split Pairs |
| Input Proctection | Protection Against Excess Voltage, Transients Ringer Signal |
| Measures Types | Measures Cable Length Via TDR Checks and Verifies Wire Map Generates Two Different Tracing Tones to Help Identify Users |
| Minimum Cable Length For Testing of Split Pairs (m) | 1 (2 Feet) |
| Physical Dimension (LxWxH) (mm) | 195x90x40 |
| Power Source (V) | 9 Battery Detects a Low Battery Condition. |
| Turns Off Automatically | Auto-Off In Any Mode And Low Power Consumption For Long Battery Life |
