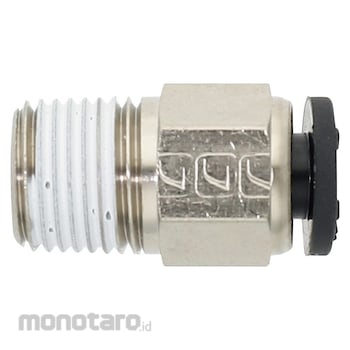

Junkosha Instant Fitting

If the maximum operating pressure of the tube is lower than the above pressure, please use it at a pressure below the maximum operating pressure of the tube.
If you are using a tube other than the applicable tube, please use a tube with an outer diameter accuracy of within ±0.1mm for nylon and within ±0.15mm for urethane, and the roundness should be a tube with a maximum outer diameter minus the minimum outer diameter of within 0.2mm.

The metal parts are treated with non-electrolytic nickel plating. Color seals for R(PT) screws, which allow easy identification of screw size, are applied. The body can be positioned according to the direction of tube extraction. The R(PT) screw part of elbow tees and similar parts can rotate independently from the resin bonding part, allowing for free positioning according to the direction of tube extraction after joint attachment. It is possible to tighten the screws while keeping the resin part fixed. The tube grip rotates smoothly within the joint, preventing the tube from rotating completely.

Piping for general air pressure and water pressure use, for robots and labor-saving equipment.
