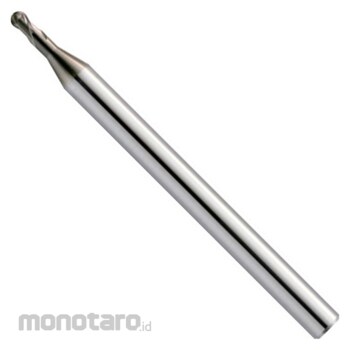

Union Tool HMGCOAT 2 Flutes Long Neck Ball End Mill
#Grup produk P111217834
Spesifikasi
| Abrasive Materials | Hardened steel (~55HRC) (~60HRC) (~70HRC), pre-hardened steel |
|---|---|
| Helix Angle (°) | 30 |
| Number of Tips | 2 |
| Overall Length L (mm) | 45 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shank Taper Angle Bta (°) | 16 |
| Surface Treatment | HMG COAT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- If interference with the workpiece is required, be sure to measure and confirm it.- Please be careful of the contact between the shank and the workpiece.
- In the part that will be grooved, reduce the feed speed to 50% or less.
- If the machine's rotation speed is insufficient, or if vibration or tool overheating occurs during processing, reduce the rotation speed and feed speed in the same ratio.
- Stable processing is possible with water-soluble or oil-based cutting oil, oil mist, or air blow.
Feature
Adopted new coating HMGCOAT.It is a high hardness coating that is superior in wear resistance to HARDMAX.
We have adopted a new shape to enhance resistance to chipping, and achieved high precision outer diameter tolerance, R accuracy, and shank diameter tolerance.
