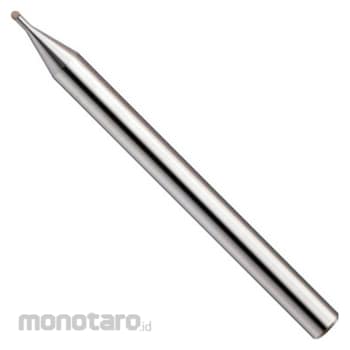

Union Tool CBN Long Neck Ball End Mill for Super Mirror Milling
#Grup produk P111214299
Spesifikasi
| Ball Radius (mm) | R0.2 |
|---|---|
| Blade Length (mm) | 0.24 |
| Material | CBN |
| Number of Tips | 2 sheets |
| Overall Length L (mm) | 50 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shank Diameter (mm) | 4 |
| Surface Treatment | Non-coated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- The shank taper angle is just a guide.- If interference with the workpiece is necessary, be sure to measure and confirm.
- Please be careful of contact between the shank and the workpiece.
Feature
We have adopted CBN materials with excellent abrasion resistance. Thanks to the vanishing effect, ultra-mirror finishing is possible.
By adopting a groove design that allows coolant to reach the cutting edge, it has a long service life.
Use
Target material to be cut: Quenched and tempered steel (up to 55HRC) (up to 60HRC) (up to 70HRC), suitable for pre-hardened steel.Ulasan Produk
