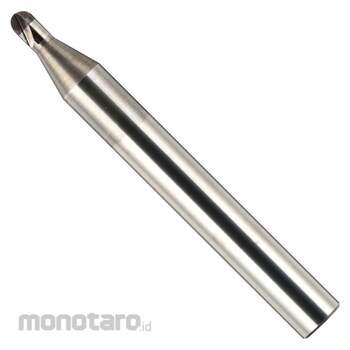

TOWA CBN Lapping Ball End Mill
#Grup produk P111214217
Spesifikasi
| Ball Radius (mm) | 0.5 |
|---|---|
| Blade Diameter (mm) | 1 |
| Blade Length (mm) | 1.2 |
| Effective Length (mm) | 2.2 |
| Helix Angle (°) | 0 (zero) |
| Material | CBN |
| Neck Diameter (mm) | Φ0.96 |
| Number of Tips | 2 |
| Overall Length L (mm) | 50 |
| Shank Diameter (mm) | 4 |
| Shank Diameter Tolerance (mm) | 0~-0.005 |
| Surface Treatment | Non-coated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
CBN end mills achieve ultra-precision machining through high accuracy and long life.Use
Material to be reduced: High hardness materials Hrc50~(stainless steel, die steel, high-speed steel), copper.Applicable processing shape: For curved surface finishing processing.
