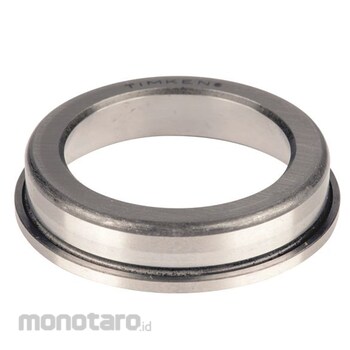

TIMKEN Tapered Roller Bearing Single Flanged Cup H Series
#Grup produk P111209659
Spesifikasi
| C - Cup Width (mm) | 31.75 |
|---|---|
| C1 - Cup Flange Width (mm) | 7.112 |
| Cg - Geometry Factor⁵ | 0.0827 |
| D - Cup Outer Diameter (mm) | 136.525 |
| D1 - Flange Outer Diameter (mm) | 143.637 |
| Da - Cup Frontface Backing Diameter (mm) | 130.05 |
| Design Unit | Imperial |
| K - Factor² | 1.62 |
| Series | H414200 |
| Y - ISO Factor⁴ | 1.67 |
| e - ISO Factor³ | 0.36 |
| r - Cup Backface "To Clear" Radius¹ (mm) | 3.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Like the TS Bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF Bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
Warning
Relate to Attribute:1 These maximum fillet radii will be cleared by the bearing corners.
2 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
4 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
5 Geometry constant for Lubrication Life Adjustment Factor a3l.
