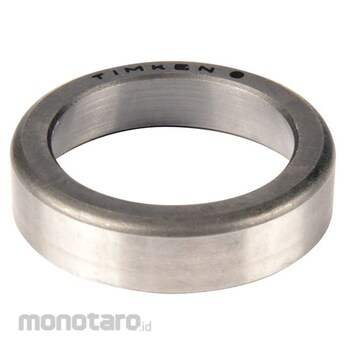

TIMKEN Tapered Roller Bearing Single Cup KLM Series
#Grup produk P111209491
Spesifikasi
| C - Cup Width (mm) | 16.2 |
|---|---|
| Cg - Geometry Factor³ | 0.0789 |
| D - Cup Outer Diameter (mm) | 74.976 |
| Da - Cup Frontface Backing Diameter (mm) | 71.9 |
| Db - Cup Backface Backing Diameter (mm) | 67.06 |
| Design Unit | Imperial |
| Series | LM503300 |
| e - ISO Factor² | 0.4 |
| r - Cup Backface "To Clear" Radius¹ (mm) | 1.52 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is the most basic and most widely used type of tapered roller Bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Warning
Relate to Attribute:1 These maximum fillet radii will be cleared by the bearing corners.
2 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
