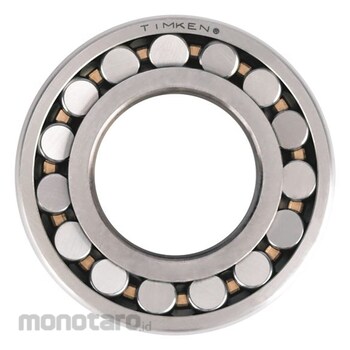

TIMKEN Spherical Roller Bearing YMW Series
#Grup produk P111207776
Spesifikasi
| B - Inner Ring Width (mm) | 104 |
|---|---|
| B - Outer Ring Width (mm) | 104 |
| C0 - Static Radial Rating (N) | 2340000 |
| C1(2) - Dynamic Radial Rating (Two-Rows) (N) | 1630000 |
| Cage Material | Brass |
| Cage Type | EM |
| Cg - Geometry Factor⁸ | 0.0954 |
| D - Outer Diameter (mm) | 320 |
| Da - Outer Ring Backing Diameter (mm) | 293 |
| Design Unit | Metric |
| R - Inner Ring "To Clear" Radius¹ (mm) | 2.5 |
| Reference Thermal Speed Rating (Grease) (rpm) | 1200 |
| Reference Thermal Speed Rating (Oil)⁷ (rpm) | 1400 |
| Series | 231 |
| Superseded Part | 23138YMW507C08 |
| d - Bore (mm) | 190 |
| da - Inner Ring Backing Diameter (mm) | 221 |
| e - ISO Factor³ | 0.3 |
| r - Outer Ring "To Clear" Radius² (mm) | 2.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical Bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present.
Warning
Relate to Attribute:1 Maximum housing fillet radius that bearing corners will clear.
2 Maximum shaft fillet radius that bearing corners will clear.
3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
4 These factors apply for both inch and metric calculations. See engineering
5 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
6 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
7 See thermal speed ratings in the engineering section.
8 Geometry constant for Lubrication Life Adjustment Factor a3l.
- Image on this page only as Representative Image, Please check the specifications of each size and color for details
