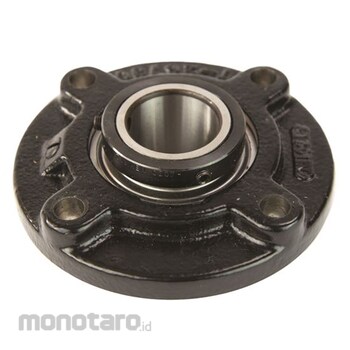

TIMKEN Fafnir Piloted Round Flanged Mounted Bearings - Concentric Locking Collar
#Grup produk P111206698
Spesifikasi
| Alternate Part Name | RFC1 1/2 |
|---|---|
| Bearing Number | GC1108KRRB |
| Bearing Type | Ball Bearing |
| Bolt Circle Diameter J (mm) | 111.1 |
| Bolt Hole Size N (mm) | 11.9 |
| Dimension A3 (mm) | 11.9 |
| Dimension E (mm) | 36.9 |
| Dimension E1 (mm) | 10.7 |
| Dimension K (mm) | 4.8 |
| Dimension S1 (mm) | 27.4 |
| Dimensions d (mm) | 92.08 |
| Dimensions d1 (mm) | 68.3 |
| Dynamic Load Rating (N) | 20500 |
| Flange Thickness A1 (mm) | 12.7 |
| Housing Construction | Piloted Rou |
| Housing Width A (mm) | 38.1 |
| Shaft Size d (inch) | 1 1/2 |
| Static Load Rating (N) | 19800 |
| Total Height L (mm) | 133.4 |
| Total Length H (mm) | 133.4 |
