Radial ball Bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type Bearing has a deep-groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation.
Size range: 3 mm - 600 mm (0.12 in. - 23.62 in.) bore

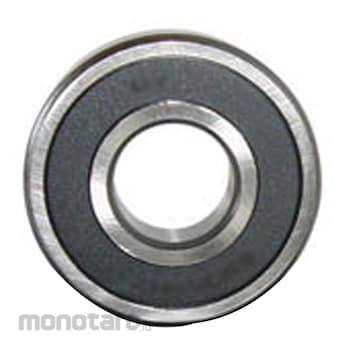

TIMKEN Fafnir Miniature Ball Bearing
#Grup produk P111206652
Spesifikasi
| Ball Type | Steel |
|---|---|
| Bearing Width (mm) | 9.525 |
| C0 - Static Radial Rating (N) | 8363 |
| Ce - Dynamic Radial Rating (N) | 14635 |
| D - Outer Diameter (mm) | 57.15 |
| Da - Outer Ring Backing Diameter (mm) | 55.9 |
| Design Unit | Imperial |
| Limiting Speed (rpm) | Grease = 6960, Oil = 8120 |
| R - Inner Ring "To Clear" Radius (mm) | 0.8 |
| d - Bore (inch) | 1 1/4 |
| da - Inner Ring Backing Diameter (mm) | 38.4 |
| r - Outer Ring "To Clear" Radius¹ (mm) | 0.8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Relate to Attribute:1 These maximum fillet radii will be cleared by the bearing corners.
