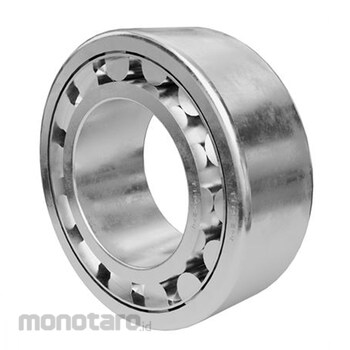

TIMKEN Cylindrical Roller Radial Bearings A5200 Series
#Grup produk P111206537
Spesifikasi
| Backing Housing Diameter Ds (mm) | 196.1 |
|---|---|
| Backing Shaft Diameter ds (mm) | 140.1 |
| Bore D (mm) | 120 |
| Cg - Geometry Factor³ | 0.1550 |
| Chamfer r (smin) (mm) | 5.5 |
| Chamfer r1 (smin)⁴ (mm) | 2.1 |
| DUR/DOR F/E (mm) | 145.265 |
| Dimension S2 (mm) | 4.29 |
| Dynamic Load Rating C1¹ (N) | 707000 |
| Outside Diameter D (mm) | 215 |
| Static Load Rating Co (N) | 952000 |
| Thermal Speed Rating-Grease (rpm) | 1900 |
| Thermal Speed Ratings - Oil (rpm) | 2200 |
| Type | WS |
| Width B (mm) | 76.2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The radial internal clearance (RIC) for the Bearing assembly must be included when ordering either a) the complete assembly or b) with the inner-ring set.
Warning
Relate to Attribute:1 Based on 1 X 10⁶ revolutions L10 life, for the ISO life calculation method.
2 Permissible axial displacement from normal position of one bearing ring in relation to the other.
3 Cg factor for bearing without inner ring.
4 Based on 1 X 10⁶ revolutions L10 life, for the ISO life calculation method.
