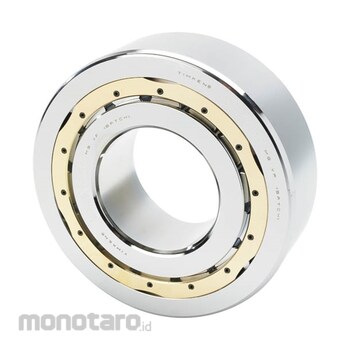

TIMKEN Cylindrical Roller Radial Bearing NJ EMA C4 Series
#Grup produk P111206458
Spesifikasi
| B - Outer Ring Width (mm) | 64 |
|---|---|
| C - Dynamic Radial Rating¹ (N) | 497000 |
| C - Inner Ring Width (mm) | 64 |
| C0 - Static Radial Rating (N) | 544000 |
| Cg - Geometry Factor³ | 0.1044 |
| D - Outer Diameter (mm) | 190 |
| Design Unit | Metric |
| R - Inner Ring "To Clear" Radius⁴ (mm) | 2.5 |
| Reference Thermal Speed Rating (Grease) (rpm) | 2600 |
| Reference Thermal Speed Rating (Oil)² (rpm) | 3000 |
| Type | NJ |
| d - Bore (mm) | 90 |
| da - Inner Ring Backing Diameter (mm) | 107 |
| r - Outer Ring "To Clear" Radius⁵ (mm) | 2.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Relate to Attribute:1 Based on 1 X 10⁶ L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.
