TRUMETER Length Measurement Machine
#Grup produk P111206351
Spesifikasi
| Cable Diameter Range (inch) | 0.24 to 2.99 (6 to 76 mm) |
|---|---|
| Unit of Measurement | Metres/Centimetres |
| Accuracy (%) | ±1 |
| Length Measurement Type | Cable, Wire & Rope |
| Material Direction | Traveling towards operator; Counter positioned on the left |
| Maximum Speed of Travel | 1500 metres/min or 3000 counts/min, whichever is lower |
| Measuring Wheel Circumference (mm) | 500 |
| Packed Dimensions (mm) | 530x330x330 |
| Wheel Type | Knurled aluminum with mechanical display |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

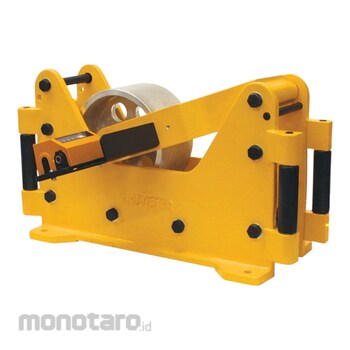

Heavy duty, multi-purpose measuring machine which measures the length of cable, wire, rope, hose, extrusions or continuous strip from 6mm (0.24in) to 76mm (3.0in) diameter. The pivot arm, also available separately (2620), carries the 500mm circumference precision ground measuring wheel. The shaft that supports the measuring wheel revolves in a double ball race which is mounted in the pivot arm. A choice of polyurethane covered or knurled aluminium measuring wheels is available. The length is indicated on a 3602 counter mounted at the side of the unit.
Feature
- Measures up to 76mm (3.0in) diameter - Heavy duty cast aluminum structure with integral mounting flanges
- Totalising counter fitted
- Optional encoder option to pulse electronic counters
- Manual lever reset
