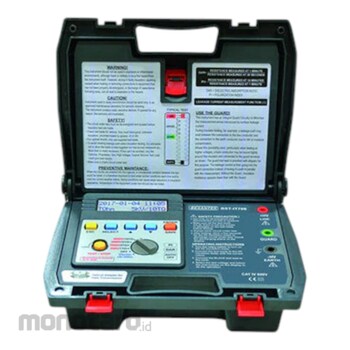

Besantek Digital High Voltage Insulation Tester is designed to evaluate Wires and Cables for proper Insulation Tolerances.
What's In The Box:
(1) Test Leads
(1) Alligator Clips
(1) Data Transmission Cable
(1) Charger
(1) Test Report
(1) Instruction Manual
(1) CD For PC Software
Besantek High Voltage Insulation Tester (Pengukur Isolasi)
#Grup produk P111205273
Sebelum PPN:
Rp71.999.900 - Rp169.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features:Test insulation resistance up to 2 TOhm (2000GOhm).
Short-circuit current up to 5mA.
Microprocessor controlled.
30 insulation test voltages : 500V, 1kV, 1.5kV, 2kV, 2.5kV,3kV, 3.5kV, 4kV, 4.5kV, 5kV,5.5kV, 6kV, 6.5kV, 7kV, 7.5kV,8kV, 8.5kV, 9kV, 9.5kV, 10kV,10.5kV, 11kV, 11.5kV, 12kV, 12.5kV,13kV, 13.5kV, 14kV, 14.5kV, 15kV.
AC/DC voltmeter.
PI (Polarization Index) indication.
DAR (Dielectric Absorption ratio) indication.
Auto-ranging on all insulation ranges.
Backlight function.
Bargraph indicates test voltage, rise and decay can be observed.
Menu driven.
Visual and audible warning if external voltage ispresent. (=30Vac or =30Vdc).
Auto-hold function to freeze the reading.
Overload protection.
Adjustment for testing time (duration) : 1~30 minutes.
Auto-off.
Calendar.
Optical USB to RS-232 data transmission.
200 measurement results can be saved in the memoryand recalled on the display.
Safety standard : EN 61010-1 CAT IV 600VEN 61010-2-030 EN 61326-1
