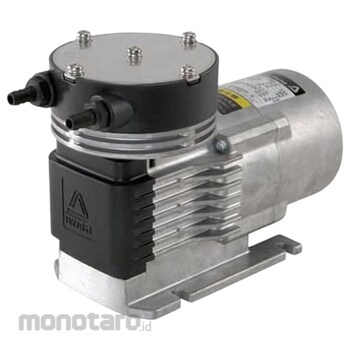

IWAKI Diaphragm Air Pump APN
#Grup produk P111201408
Spesifikasi
| Hose Diameter (mm) | 9 |
|---|---|
| Maximum Air Volume (L/minute) | 15/18 |
| Discharge Pressure (MPa) | 0.1 |
| Dimensions (mm) | 96×195×147 |
| Material | (Diaphragm) Fluorine rubber (FKM) |
| Connection Port Outer Diameter (mm) | 9 |
| Fluid | Air |
| Motor Rated Power (W) | 30 |
| Pipe Connection Direction | Horizontal |
| Power Consumption (W) | 64/64 (50/60Hz) |
| Power Supply (V) | AC100 (power plug not included) |
| Pump | Single |
| Ultimate Pressure (kPa) | 40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is a diaphragm type air pump that can be used as a vacuum pump on the intake side and as a compressor/blower on the supply side. High vacuum performance, starting characteristics, and durability are achieved by adopting a highly efficient motor and special diaphragm, measures to prevent bearing creep, and increased strength of the connecting rod. As it is a diaphragm pump directly connected to the motor there is no contamination with carbon or oil, and airtightness from the outside is maintained, making it ideal for applications that require clean air.
