Use Instructions:
1. Prepare before using
Please connect the headset and vibration getter assembly properly
2. Operation and instructions in using
Put on the headset, place the vibration-picking component on the table or ground, turn it on instrument into measurement interface, default to "peak" mode, listen to ambient noise, or feet rubbing lightly ground around vibration picking components.
3. Listen to the sound of friction and observe the dynamics of the waveline graph on the screen. If necessary increase sensitivity, press the volume key "+", otherwise Press "-". When in use, must press buttons on cable-controlled components all the time data received
4. In the "spectrum" mode, the instrument has 7 frequencies, the frequency center these 7 frequencies are 100 HZ, 200 HZ, 400 HZ, 800 HZ, 1KHZ, 1.5 KHZ, 2 KHZ, in to perform a detailed frequency analysis on the leaked signal.

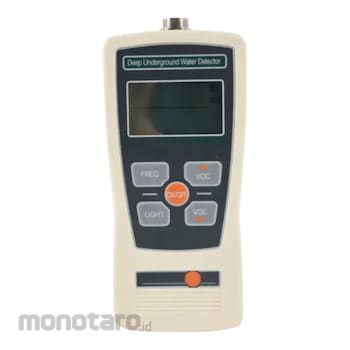

Soonda Water Leak Detector Sensor
#Grup produk P111197673
Spesifikasi
| Battery Life (hour) | ≧ 15 (Runtime After a Full Charge) |
|---|---|
| Frequency Division (Central Frequency) | 100Hz, 200Hz, 400Hz, 800Hz, 1KHz, 1.5KHz, 2KHz |
| Instrument Size (mm) | 171x81x34 |
| Measuring Depth (m) | 1 |
| Operating Temperature (°C) | -10 to +50 |
| Power | Lithium Battery, Rechargeable |
| Power Current (mAh) | 2000 |
| Power Voltage (V) | 7.4 |
| Screen | LCD |
| Screen Resolution (pixel) | 128x64 |
| Storage Temperature (°C) | -10 to +70 |
