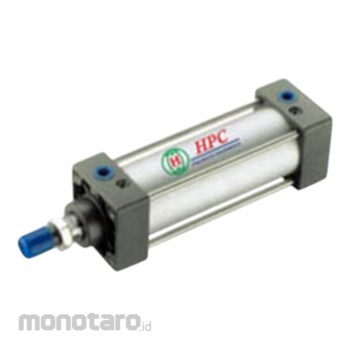

HPC Standard Cylinder Bore 100mm Blue SC Type
#Grup produk P111196179
Spesifikasi
| Buffer Stroke | 32 |
|---|---|
| Buffer Type | Adjustable Buffer |
| Cylinder Bore (mm) | 100 |
| Dimension A (mm) | 188 |
| Dimension A1 (mm) | 263 |
| Dimension B (mm) | 75 |
| Dimension C (mm) | 108 |
| Dimension D (mm) | 47 |
| Dimensions a2 (mm) | 248 |
| Ensured Pressure Resistance (Mpa) | 1.35 |
| Fixed Type | Normal Type |
| Magnet | without Magnet |
| Motion Pattern | Double Action |
| Operating Speed Range (mm/s) | 30 to 800 |
| Operating Temperature Range (°C) | -5 to 70 |
| Operating Voltage Range (Kgf/cm²) | 0.1 to 0.9 |
| Port Size (inch) | G 1/2 |
| Series Code | Standard Double Action (Tie-rod Type) |
| Working Medium | Air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
HPC Black dan HPC Blue hanya menyatakan standard untuk produk.Ulasan Produk
