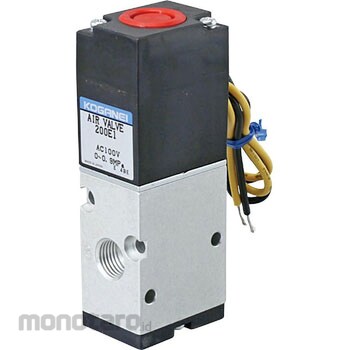

KOGANEI Solenoid Valve 200 Series
#Grup produk P111191633
Sebelum PPN:
Rp2.399.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Assured Pressure Resistance (MPa) | 1.35 |
|---|---|
| Insulation Resistance (MΩ) | 10 |
| Lubrication | Unnecessary |
| Maximum Operating Frequency (Hz) | 5 |
| Mounting Side | freedom |
| Number of Positions | 2 |
| Operating Pressure Range (MPa) | 0 to 0.9 |
| Operating Temperature Range (°C) | 0 to 50 |
| Response Time | 20 ms at ON/20 ms or less at OFF (at 0.5 MPa) |
| Suitable fluid | Air |
| Type of Acting | Direct acting type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The sealing method uses a pressure balance poppet method that balances the supply pressure at the valve seat. Small operating force makes it suitable for high frequency operation, and it is small and has a large flow rate. Overspring mechanism that does not apply excessive force to the packing. High durability. Single solenoid 2, 3, and 5 port valves, operate reliably even at low pressure. Multifunctional as a selector valve and divider valve, making full use of low pressure actuators. Flywheel diode is standard equipment for AC solenoid (optional for DC24V). Eliminates solenoid burnout and humming. A wide range of options to meet diverse needs.
Feature
The seal system uses a pressure balance poppet system that balances the supply pressure at the valve seat. Small operating force, suitable for high frequency operation, small size, large flow rate.Overspring mechanism that does not apply excessive force to the packing. Demonstrates high durability.
Single soroid 2/3/5 port valve, operates reliably even from low pressure. It makes full use of the low-pressure actuator and exhibits multifunctionality as a selector valve and divider valve.
The AC solenoid is equipped with a flywheel diode as standard (optional for DC24V). Eliminates solenoid burnout and buzzing.
Abundant options to meet diverse needs.
