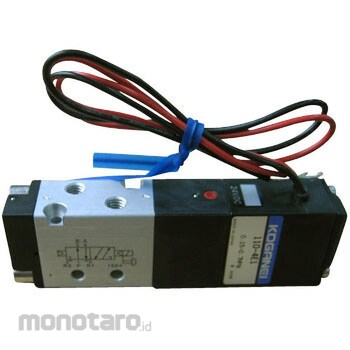

KOGANEI Solenoid Valve 110 Series
#Grup produk P111191615
Spesifikasi
| Assured Pressure Resistance (MPa) | 1.05 |
|---|---|
| Effective Cross Section Area CV Value (mm²) | 4.2(0.23) |
| Excitation Current (mA) | 65(1.6W) |
| Insulation Resistance (MΩ) | over 100 |
| LED Color | Red |
| Line Color | (+) Red/(-) Black |
| Maximum Operating Frequency (Hz) | 5 |
| Mounting Side | freedom |
| Number of Ports | 5 |
| Number of Positions | 2 |
| Operating Pressure Range (MPa) | 0.15 to 0.7 |
| Operating Temperature Range (°C) | 5 to 50 |
| Operating Voltage Range (V) | 21.6 to 26.4(24V±10%) |
| Rated Voltage (V) | DC24 |
| Response Time | ON 15ms/OFF 25ms or less (at 0.5MPa) |
| Suitable fluid | Air |
| Type | Direct piping |
| Type of Acting | Pilot type |
| Type of Switching | 4 direction single acting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A low-cost, flexible application with a simple form that emphasizes basic performance. Perfect surge countermeasures. Equipped with a manual button (non-lock type) as standard equipment for easy adjustment and maintenance during assembly.
Feature
A simple form with an emphasis on basic performance, low cost, and flexible applications. Complete surge protection. Equipped with a manual button (non-locking type) as standard for easy adjustment and maintenance during assembly.Ulasan Produk
