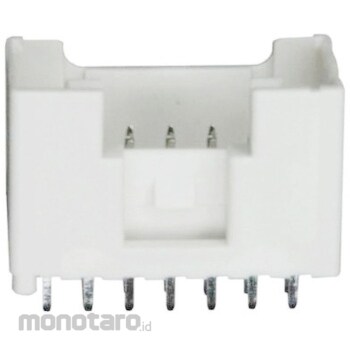

J.S.T. Mfg PCB Connection Pin Header 14-Way
#Grup produk P111189674
Spesifikasi
| Cell Spacing (mm) | 2 |
|---|---|
| Connection Direction | Straight |
| Connection Method | Solder |
| Contact Material | Copper alloy |
| Number of Lines | 2 |
| Number of Poles | 14 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | 3 |
| Rated Voltage (kV) | 250 |
| Series | PUD |
| Surface Mount Device | Through-hole mounting |
| shrouded/unshrouded | Shroud |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
JST 2.0 mm PUD Series Board Header Connectors. The PUD series 2.0 mm pitch wire-to-board header connectors feature low insertion force and a compact, high-density double-row design.
They provide stable contact performance even in extremely vibration-prone environments.
The PUD 2.0 mm board-to-board header connector has a locking mechanism that produces an audible click when the header and socket are engaged.
They are available with or without board placement bosses (with BxxB-PUDSS bosses) in a vertical through-hole mounting orientation or in a right-angle mounting orientation with mounting bosses.
Surface mount versions are also available.
