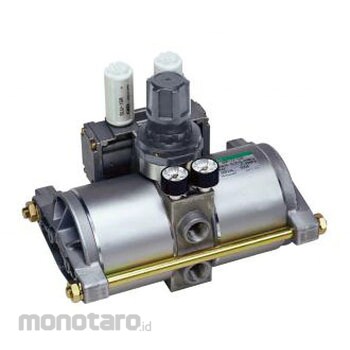

CKD ABP Series Air Booster
#Grup produk P111183573
Spesifikasi
| Boost Ratio | Up to 2 times (equivalent) |
|---|---|
| Durability | 5 million times (nominal) |
| Maximum Operating Pressure (MPa) | 0.99 |
| Operating Ambient Temperature (°C) | 0 to 50 (No freezing) |
| Option | Pressure gauge, silencer, foot bracket |
| Pipe Connection Diameter | Rc1/2 |
| Port Position | Same side as IN port |
| Setting Pressure (MPa) | Primary pressure + 0.1 MPa to twice the primary pressure (maximum 0.99 MPa) |
| Suitable fluid | Compressed air |
| Type Of Thread | Rc |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
By combining with an air tank without using electricity, it is possible to increase the pressure up to twice the temporary pressure (up to 0.99 MPa) only with air pressure. High pressure can be applied only to the necessary places in the factory, and energy and cost savings can be achieved as a total line.
Feature
By combining with an air tank without using electricity, it is possible to increase the pressure up to twice the temporary pressure (up to 0.99MPa) using only air pressure.High pressure can be applied only to the necessary locations within the factory, resulting in energy and cost savings for the entire line.
