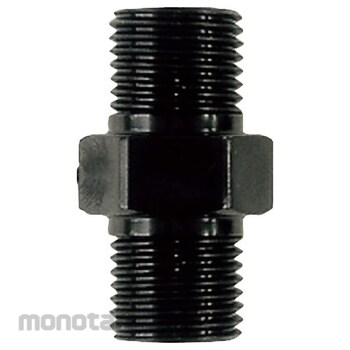

Joplax External Nipple of the Both Side
#Grup produk P111175778
Spesifikasi
| Connector Diameter | (G1/4) screw |
|---|---|
| Hex Width Across (mm) | 17 |
| Material | Nylon (PA) |
| Mating Connection Size | G1 / 4 female thread |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Pressure (MPa) | 0~1.0 |
| Operating Temperature (°C) | 0~50 |
| Operating Temperature Range (°C) | 0~50 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Screw Size | G1/4x12 |
| Suitable fluid | Air |
| Width Across Flats (mm) | 17 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Please use the seal tape as needed.Feature
It boasts excellent impact resistance with the use of engineering plastics. It is lightweight and does not rust because it is made of plastic.
It is compatible with the Joblasta series.
Use
Connection between G1/4 male threads on general air piping.Ulasan Produk
