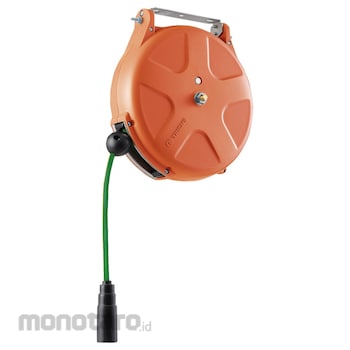

TRIENS Electrostatic Discharge Air-Hose Reel
#Grup produk P111175574
Spesifikasi
| Color | Orange |
|---|---|
| Connect Fitting (Primary) | Male flexible R1/4 |
| Connect Fitting (Secondary) | G1/4 female screw |
| Height (mm) | 314 |
| Hose Inner Diameter (Φmm) | 6.5 |
| Hose Length (m) | Primary side: 1.0, Secondary side: 10 |
| Hose Outer Diameter (Φmm) | 10 |
| Included Accessories | Mounting base set, 1 meter primary side hose, 2.0 meter grounding cable, female coupler |
| Installation | Hanging; Wall mounting |
| Length (mm) | 152 |
| Material | Hose: Polyurethane hose (with carbon content), main body cover: resin |
| Material (Hose) | Urethane (with carbon) |
| Maximum Operating Pressure (MPa) | 1.4 |
| Operating Pressure (MPa) | 1.4 |
| Width (mm) | 290 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Do not use this for grounding other devices.* Please make sure to ground it properly when installing.
* SHS-210EFA is a brake type.
Feature
It releases static electricity from the fluid air and the hose itself.It is compact, lightweight, and does not take up space.
It adopts an easily detachable mounting base.
It can be swiveled as needed.
It adopts an elbow that allows free movement of the input hose.
It reduces hose damage by using a resin protective spring at the hose tip.
Use
Delicate painting work on automotive bodies, etc. In an electrostatic painting environment. As part of electrostatic discharge measures. To prevent electrostatic ignition. As a measure against flow charging.Ulasan Produk
