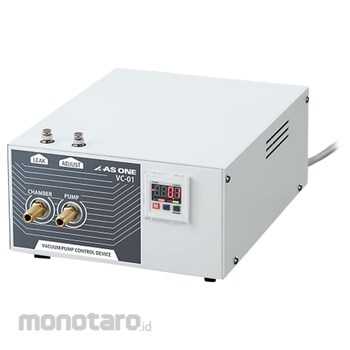

AS ONE Vacuum Controller
#Grup produk P111170551
Spesifikasi
| Connected Capacity | Resistor Load AC100V VMAX6A |
|---|---|
| Connection Port Diameter (mm) | 10.5 |
| Control Method | Solenoid Valve Or Power Supply ON/OFF Control |
| Current (A) | 6 |
| Min. Display Unit (kPa) | 0.1 |
| Package Size (mm) | 410x260x160 |
| Power Supply (V AC) | 100 (50/60Hz) |
| Pressure Setting Range (kPa) | 101.3 to 0.0 (atmospheric pressure) |
| Size (mm) | 210x310x130 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Cannot be used for corrosive gas flammable gas.Feature
- An in-line connection between the sealed container (chamber) and the vacuum pump controls the pressure in the container to a constant value.- It can be used in two ways (switching): electromagnetic valve control when using a pump suitable for continuous operation, such as an oil rotary pump, and power control when using a dry pump with no oil back concerns.
- In the case of power control, once the set value is reached, the pump power is turned off, thus saving power.
- Convenient for long duration pressure control.
